Wide Fork Hand Pallet Truck (RPV1500SV/RPV1500NSV) 1500 kg
Price
On request
Direct factory order
— 16–20 weeks · 50% deposit
Direct factory order
Produced to order at the manufacturer’s plant and shipped directly — the factory discount is already included in the price shown.
- Production & delivery: 16–20 weeks
- Deposit at order: 50%
- Balance: 50% before dispatch or collection
Factory-order prices are outside the automatic volume and bundle discount programme. Because production and sea freight are scheduled months ahead, we reserve the right to adjust the balance in the event of significant exchange-rate or container-freight cost changes before dispatch — we will always contact you first. B2B sales only.
Select configuration
Choose attribute values to resolve the exact variant, SKU and price.
Choose all attributes to lock a variant.
Direct factory order (made to order)
Group order
1 of 6 units secured — 5 more to confirm the group
Be the first to order and get an extra −2% — already included in the price at checkout. Your booked deposit starts the countdown for the rest of the group.
A 50% deposit secures your units. If the group is not completed in time, your deposit is refunded in full within 5 working days. Group order terms
Delivery terms: FCA (Incoterms 2020). You or your freight forwarder collect the goods at our premises; we load and complete the EX-1 export declaration. See the Delivery page for details.
Categories:
Hand Pallet Trucks
Tags:
Manual Pallet Trucks,
Pallet Jacks
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.
A load that is wider than the forks it sits on is unstable and awkward, and packing timber under it only raises the centre of gravity. This truck widens the support instead: the forks are set 840 mm apart, which is roughly 150 mm more than the widest standard version, so wide crates, boards and frames rest on the forks rather than balance on them.
Two chassis versions
- RPV1500SV — standard: 85 mm lowered fork height, lift to 200 mm, ø200 mm steering wheels and ø80 mm fork rollers
- RPV1500NSV — low profile: 52 mm lowered fork height, lift to 140 mm, ø150 mm steering wheels and ø50 mm rollers for shallow frames
- 1500 kg capacity and 840 mm fork spread on both, forks 1150 or 1220 mm long
- 100 kg service weight
Typical loads
- Wide crates and boxes, panel and board stacks
- Machine bases, welded frames and cable drums on wide supports
- Overseas pallets and one-off wooden supports that do not match EUR dimensions
- Two narrow pallets carried side by side
Before you order
An 840 mm fork spread will not enter the openings of a standard EUR pallet, so this truck is meant for wide loads and purpose-built supports. Height without the tiller is 431.5 mm on the standard version and 396 mm on the low profile version.
Order online or send a quote request for delivery terms and customer-specific configurations.

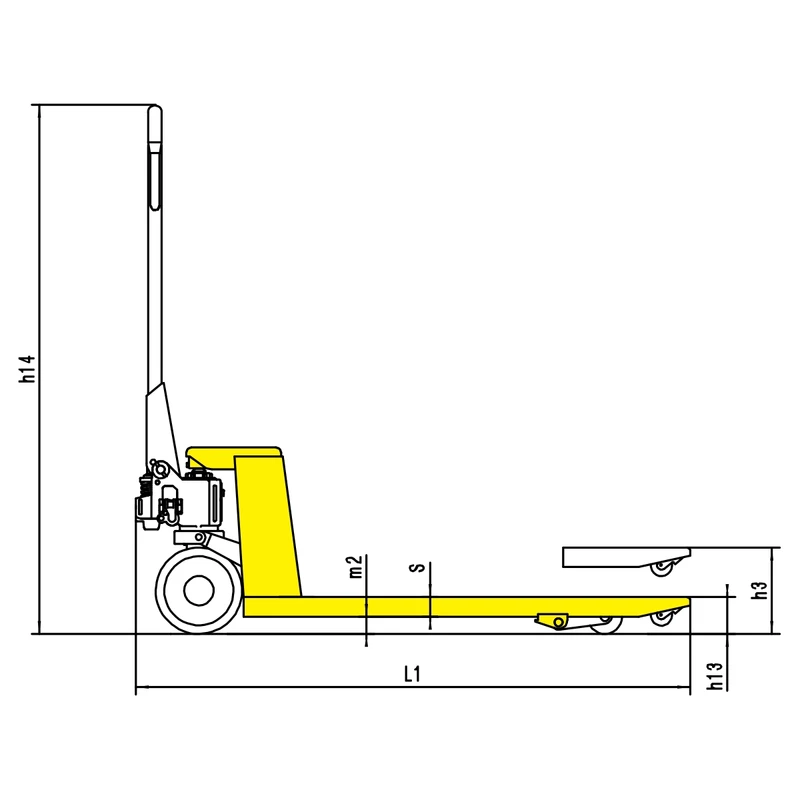

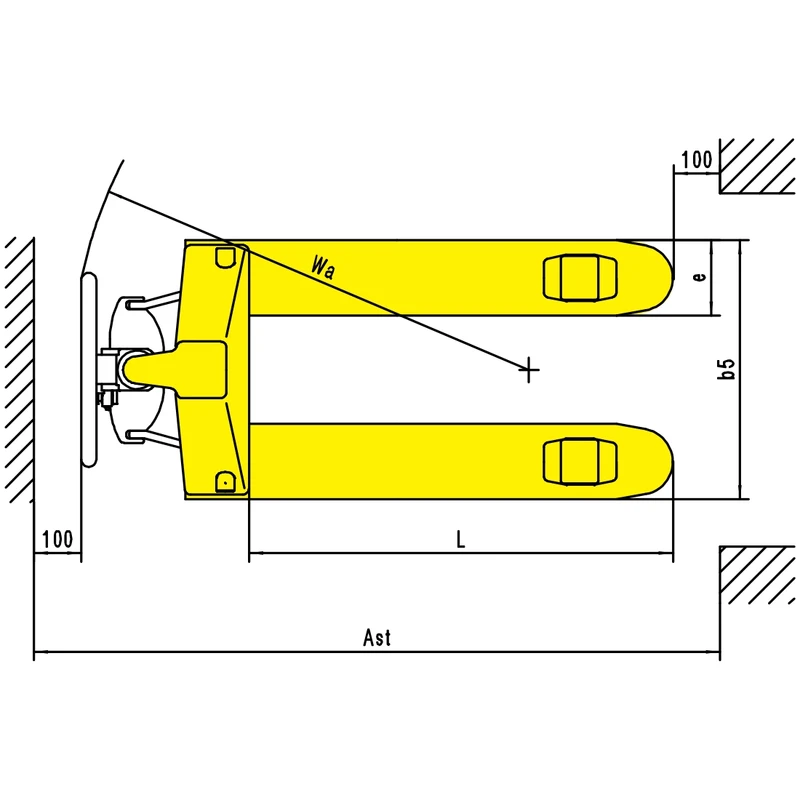

Attributes
| Fork profile | Standard profile (85 mm lowered), Low profile (52 mm lowered) |
|---|---|
| Load capacity (Q) | 1500 kg |
| Width overall forks (b5) | 840 mm |
| Fork length (l) | 1150 mm, 1220 mm |
| Lowered fork height (h13) | 85 mm / 75 mm (standard), 52 mm (low profile) |
| Max. lift height (h3) | 200 mm / 190 mm (standard), 140 mm (low profile) |
| Height without tiller | 431.5 mm / 421.5 mm (standard), 396 mm (low profile) |
| Steering wheels | ø200 mm / ø180 mm (standard), ø150 mm (low profile) |
| Fork rollers | ø80 mm / ø74 mm (standard), ø50 mm (low profile) |
| Service weight | 100 kg |
| Group Order Program | True |
