Heavy Duty Hand Pallet Truck (RPV3500HD) 3500 kg
Price
On request
Direct factory order
— 16–20 weeks · 50% deposit
Direct factory order
Produced to order at the manufacturer’s plant and shipped directly — the factory discount is already included in the price shown.
- Production & delivery: 16–20 weeks
- Deposit at order: 50%
- Balance: 50% before dispatch or collection
Factory-order prices are outside the automatic volume and bundle discount programme. Because production and sea freight are scheduled months ahead, we reserve the right to adjust the balance in the event of significant exchange-rate or container-freight cost changes before dispatch — we will always contact you first. B2B sales only.
Direct factory order (made to order)
Group order
1 of 6 units secured — 5 more to confirm the group
Be the first to order and get an extra −2% — already included in the price at checkout. Your booked deposit starts the countdown for the rest of the group.
A 50% deposit secures your units. If the group is not completed in time, your deposit is refunded in full within 5 working days. Group order terms
Delivery terms: FCA (Incoterms 2020). You or your freight forwarder collect the goods at our premises; we load and complete the EX-1 export declaration. See the Delivery page for details.
Categories:
Hand Pallet Trucks
Tags:
Manual Pallet Trucks,
Pallet Jacks
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.
The 3500 kg hand pallet truck fills the gap between a standard 2500 kg truck and a heavy 5000 kg model. Frame, forks and lifting linkage are reinforced, while the footprint stays that of a normal pallet truck, so heavy pallets can be moved in the aisles and doorways you already have.
Built for the heavy end of manual handling
- 3500 kg rated capacity with a 200 mm lift out of an 85 mm lowered fork height
- Fork spread of 550 or 685 mm to spread the load across industrial pallets and skids
- ø200 mm steering wheels and ø80 mm fork rollers to keep rolling resistance manageable at full load
- 100 kg service weight, so it is still a truck one person can position by hand
Typical work
- Steel, stone and building material pallets that overload a 2500 kg truck
- Machine bases, moulds and tooling moved between production cells
- Goods receiving where incoming pallet weights vary and a safety margin is needed

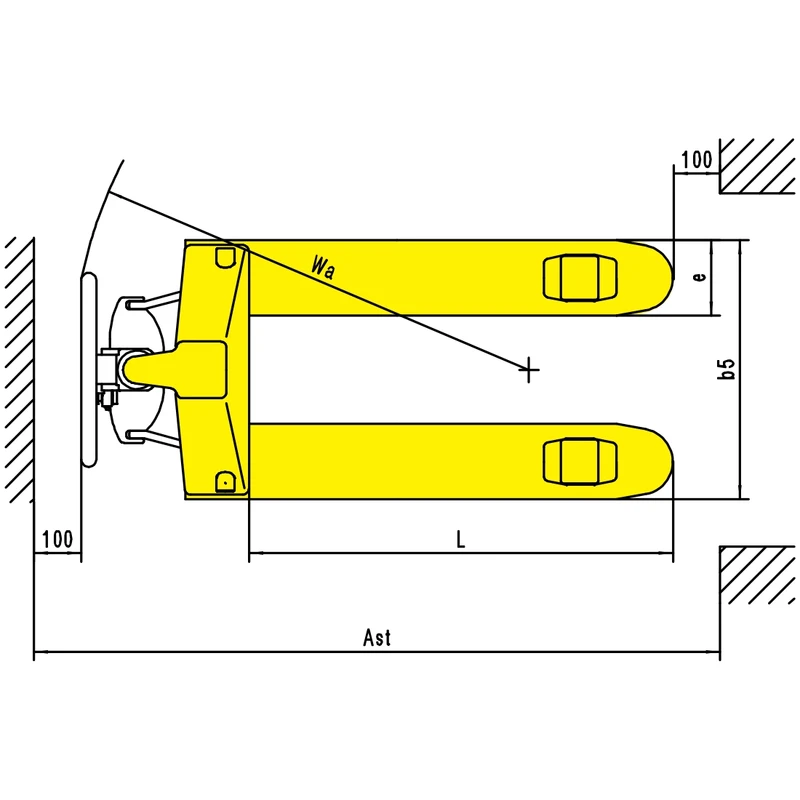

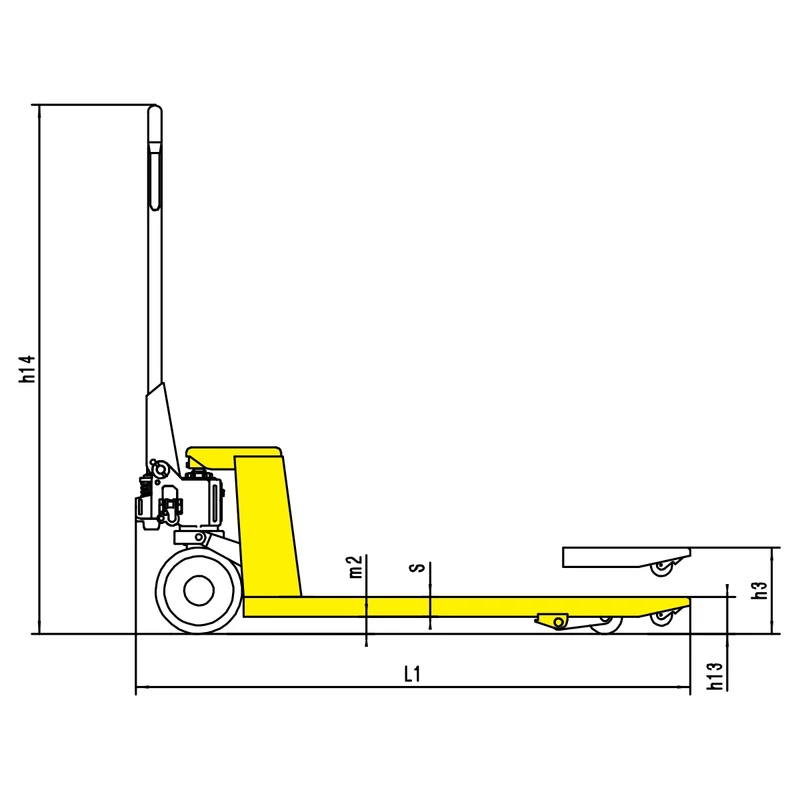

Dimensions
Forks are 1150 or 1220 mm long, lowered fork height is 85 mm with ø200 mm steering wheels or 75 mm with ø180 mm wheels, and the truck lifts to 200 or 190 mm accordingly. Height without the tiller is 443 or 433 mm and service weight is 100 kg.
Order online or send a quote request for delivery terms and customer-specific configurations.
Attributes
| Load capacity (Q) | 3500 kg |
|---|---|
| Lowered fork height (h13) | 85 mm, 75 mm |
| Max. lift height (h3) | 200 mm, 190 mm |
| Height without tiller | 443 mm, 433 mm |
| Fork length (l) | 1150 mm, 1220 mm |
| Width overall forks (b5) | 550 mm, 685 mm |
| Steering wheels | ø200 mm, ø180 mm |
| Fork rollers | ø80 mm, ø74 mm |
| Service weight | 100 kg |
| Group Order Program | True |
