ENDO Anti-Sway ATEX Pneumatic Balancer (EHB-85D MSD Module) 0-90 kg
Price
7.440,00 EUR
≈ £6,369 (indicative — billed in EUR)
Available — ships in 5–7 working days
Delivery terms: FCA (Incoterms 2020). You or your freight forwarder collect the goods at our premises; we load and complete the EX-1 export declaration. See the Delivery page for details.
Categories:
Pneumatic Balancers
Volume pricing — save up to 12%
Discount is calculated automatically on the cart subtotal.
| Quantity | Discount |
|---|---|
| 1 unit | — |
| 2 | −3% |
| 3–4 | −5% |
| 5–9 | −8% |
| 10+ | −12% |
+3% bundle promo when this order combines items from at least two product categories (e.g. a hoist + a jib crane). Combined with volume pricing, total savings can reach 15%.
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.

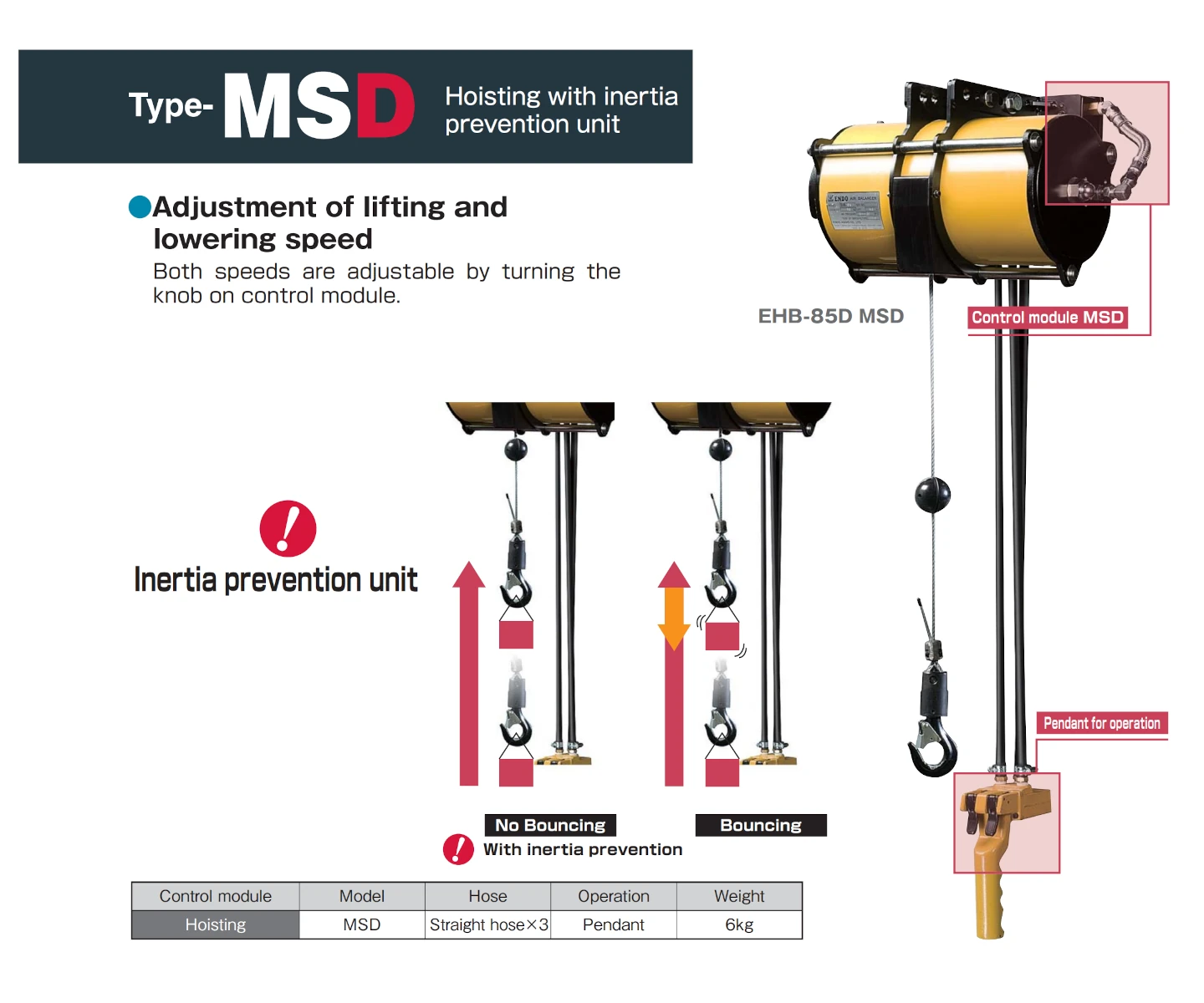

Japanese-made ATEX pneumatic balancer EHB-85D with the MSD anti-inertia module (0-90 kg) — the built-in braking system eliminates wire rope drift and load swing after stopping.
Key features
- MSD module: built-in braking eliminates wire rope inertia motion after stopping and prevents load swing
- Integrated DOWN STOP safety function — the suspended load will not fall even if the air supply is cut or a hose bursts
- Air consumption about seven times lower than a pneumatic hoist
- Air pressure 0.4-0.7 MPa, air inlet Rc 3/8
- Wire rope 1.9 m (4.76 mm)
- ATEX zero gravity pneumatic balancer, made in Japan
Technical overview
- Model / SKU: EHB-85D-MSD
- Product family: Pneumatic Balancers
- Working load range: 50 - 90kg
- Cable length: 1,9 m
- Cable diameter: 4,76 mm
Order online or send a quote request for delivery terms and customer-specific configurations.
Attributes
| Working load range | 50 - 90kg |
|---|---|
| Cable length | 1,9 m |
| Cable diameter | 4,76 mm |
